equip your rig with the toughest
winches on the market

Engineered for extreme recoveries, Carbon Tank Winches deliver unmatched power, reliability, and durability.
When the terrain fights back, you need a winch that won't.

why choose carbon tank winches?

Easy Engagement
and Disengagement

20,000lb (9071kgs)
Pulling Power

Heavy Duty
Pressure Tested

Cast & Precision Machined Alloy Winch Housing

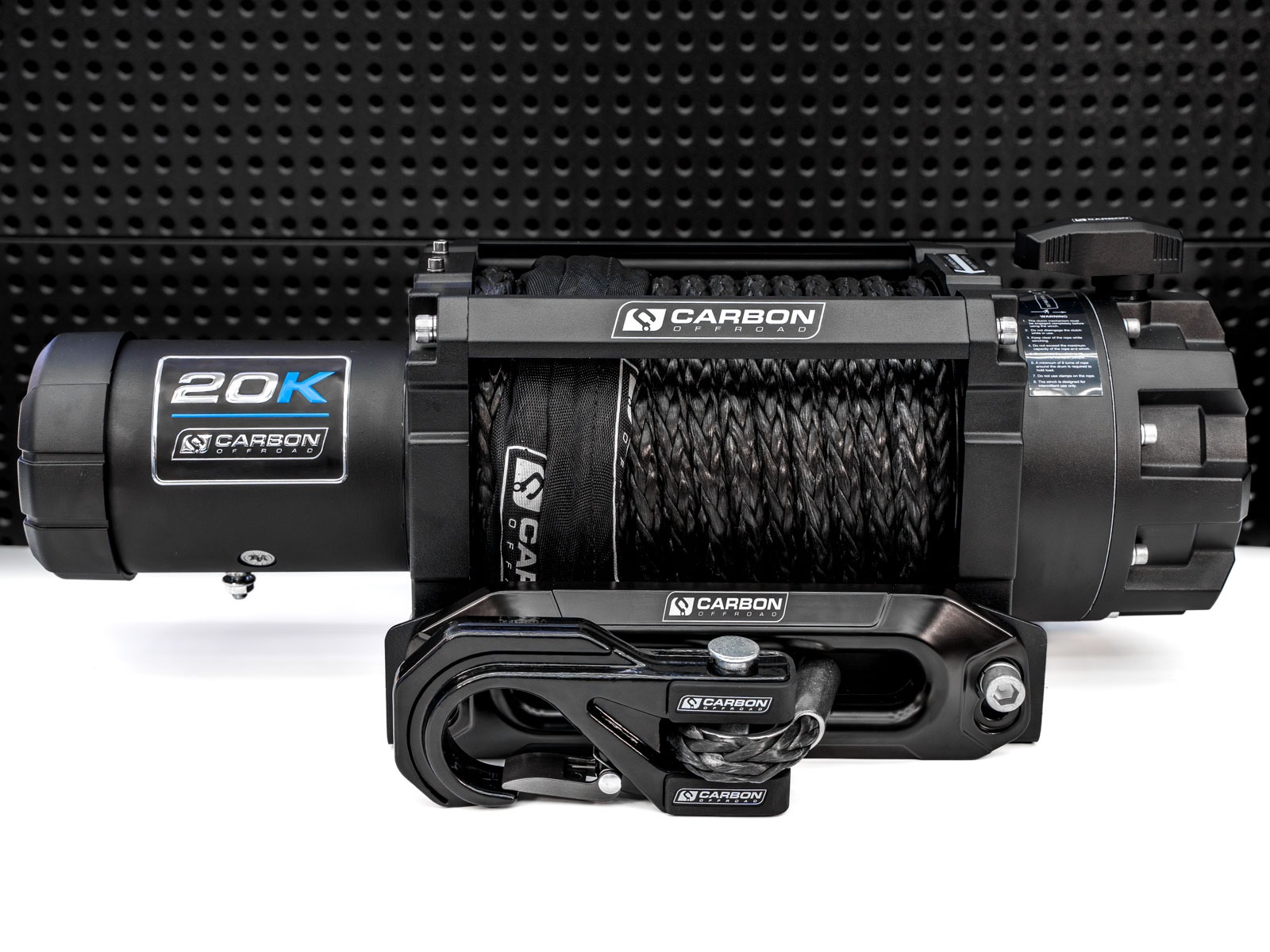

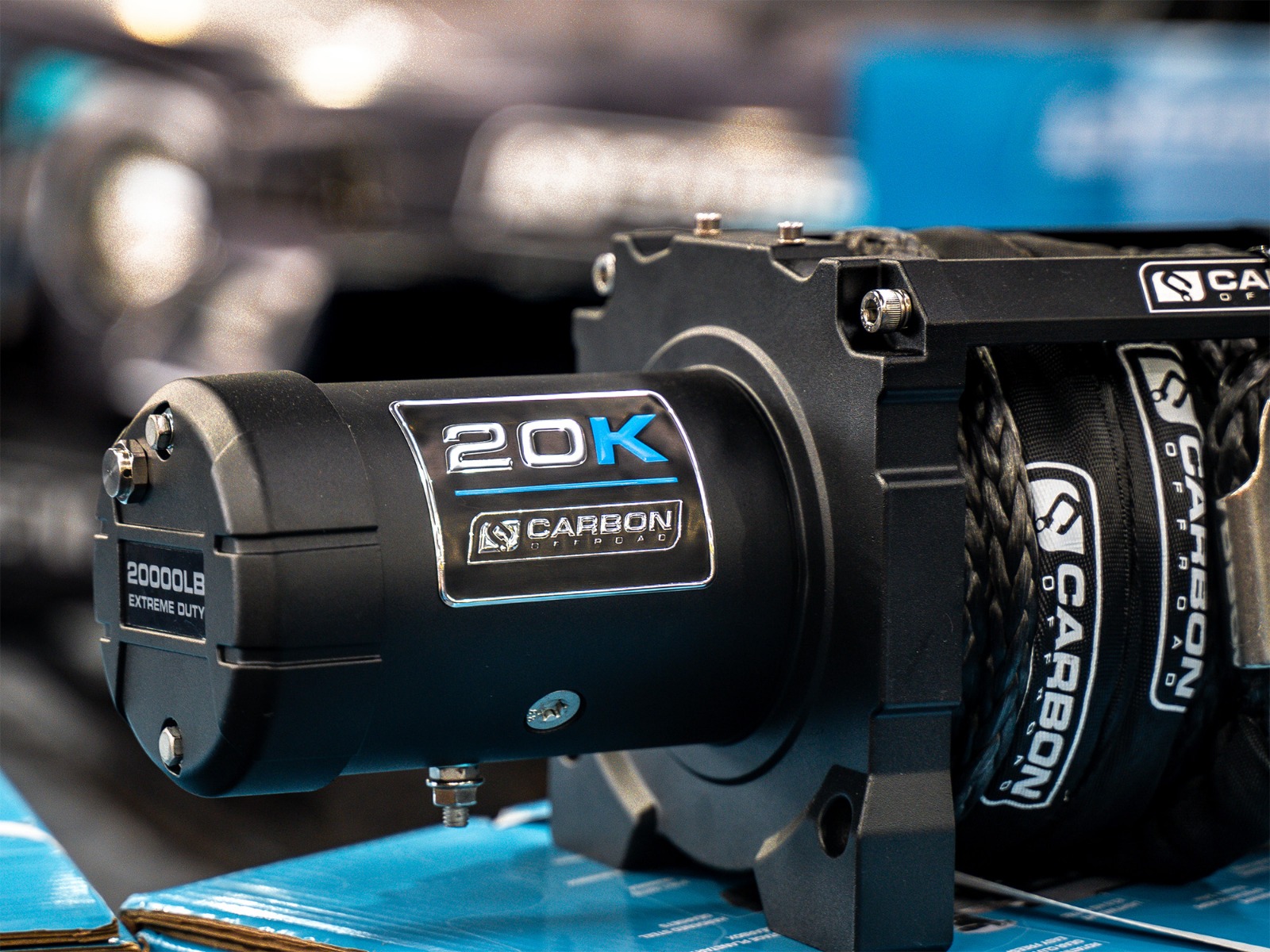

Carbon Tank 20,000lbs
24/12V Electric Winches

CARBON TANK 20K KEY FEATURES

High-Efficiency 24 or 12V Motors: The powerful electric motor delivers faster line speeds and superior pulling strength, reducing recovery times and maximizing performance when it matters most. Its high-efficiency design minimizes energy consumption while offering peak output for extended recoveries. With a single line pull of 9 tonne, Tank winches have the power you need.

Precision Control: Featuring a user-friendly wireless remote-control system, Carbon Tank Winches allow for precise line control from a safe distance. This ensures maximum safety and accuracy during every recovery operation.

order yours

Built for Tough Conditions: With a rugged, weather-resistant housing and corrosion-resistant finish, Carbon Tank 24/12V Winches are built to handle the harshest elements. Whether in mud, rain, or extreme heat, these winches keep delivering exceptional performance when you need it most.

Heavy-Duty Synthetic Rope: Lightweight, high-strength 14mm thick synthetic rope for easy handling and reduced recoil risk, ensuring dependable performance in challenging conditions.

Enhanced Safety Features: Carbon Tank 24V Winches are equipped with automatic load-holding brakes and robust fairleads to prevent line slippage, adding an extra layer of security to every recovery effort.

find out more

the tech stuff

SPECIFICATIONS

Rated Pulling Power: 20,000lb (9072kg)
Power: 12V DC or 24V DC

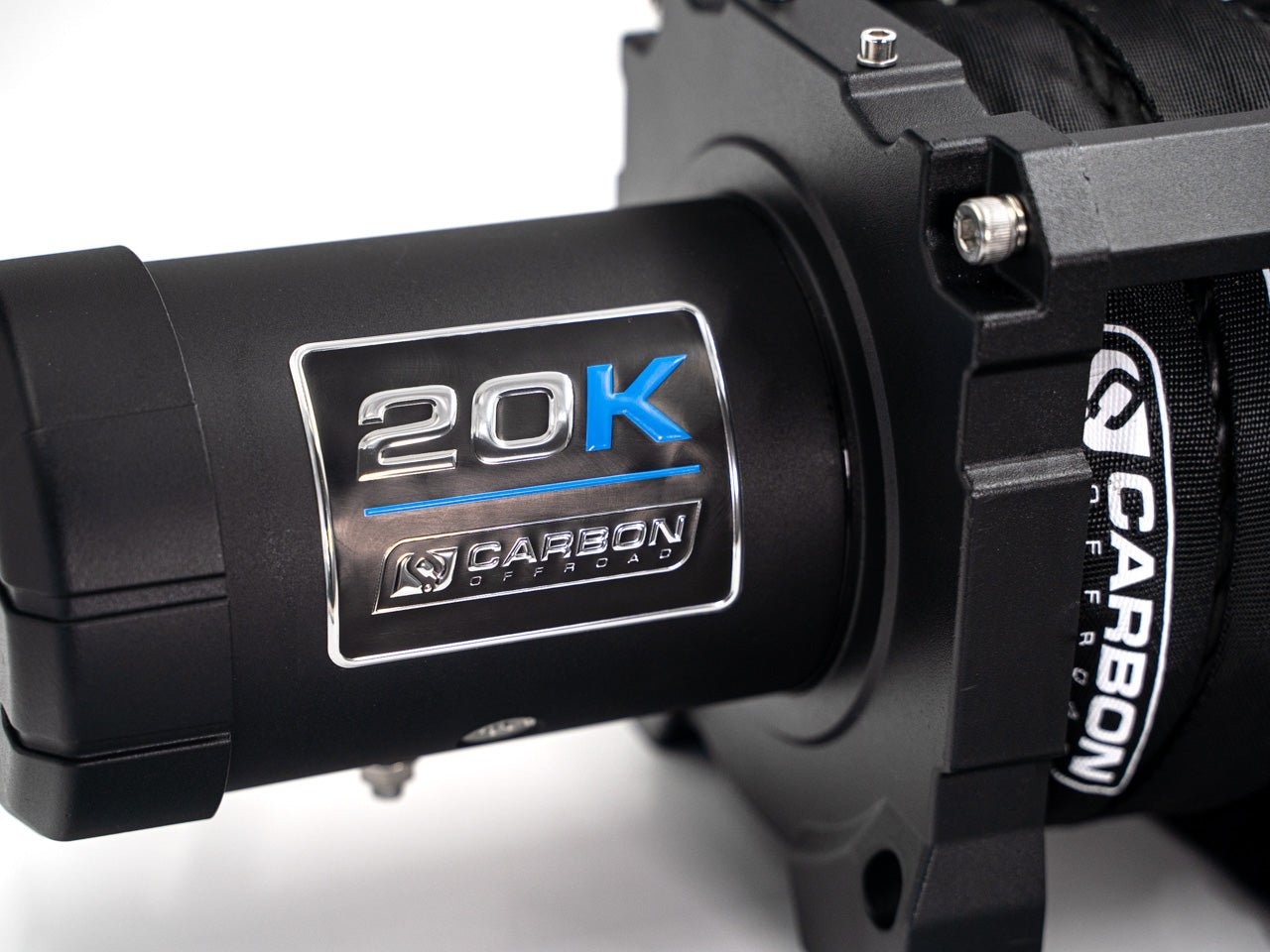

Motor: 7.8HP Series Wound intermittent duty cycle
Cabling: 25mm2 conduited cable with terminated lugs
Hand Control: 2 in 1 rechargeable wireless or plug in wired loom - (spare battery included)
IP Rating: IP68 - Motor unit pressure tested to 20psi

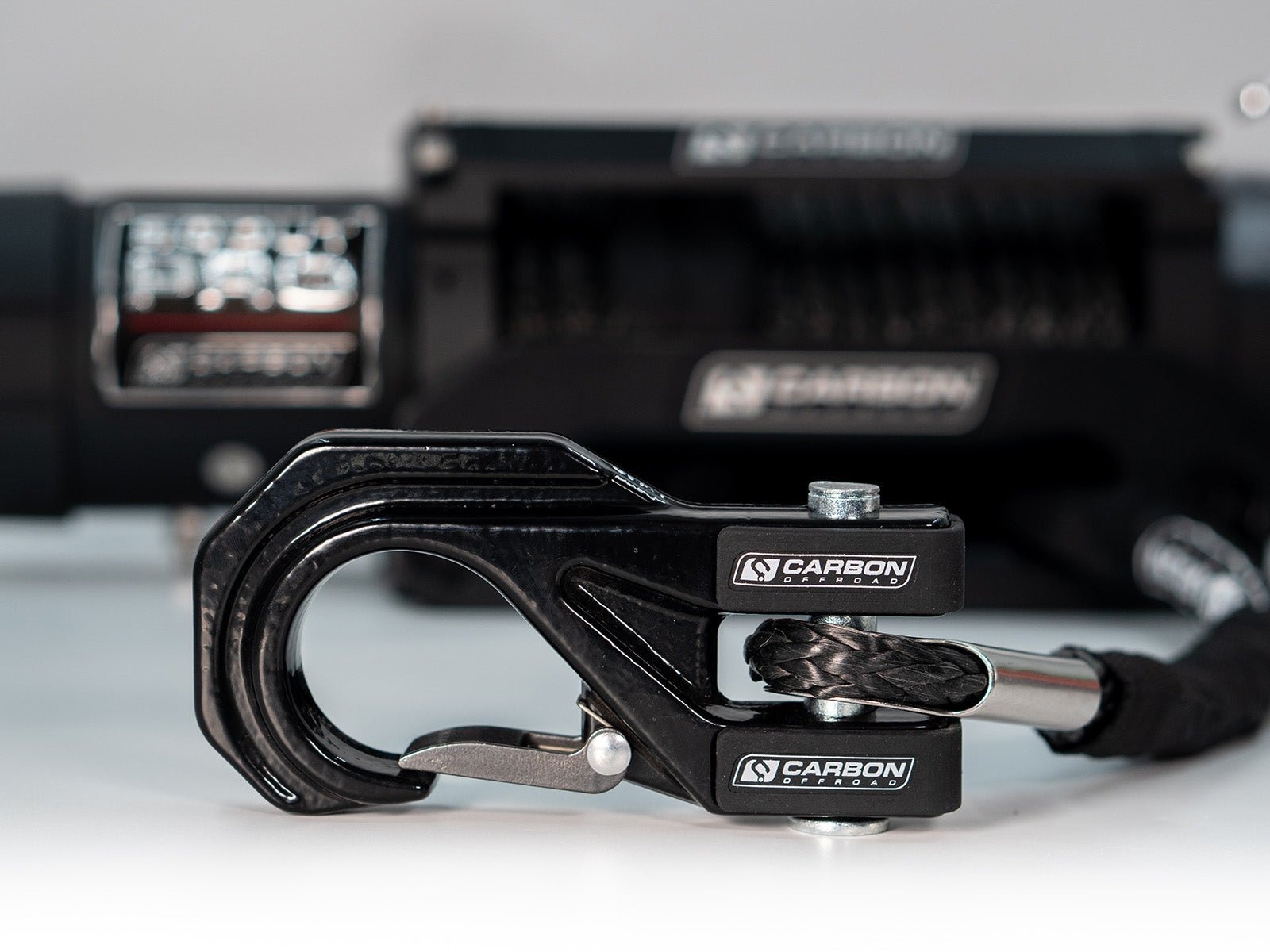

Hook: High strength forged alloy wide gate hook
Control Box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver
Isolator: Heavy duty marine rotary style isolator with mounting bracket.
Winch Housing: Cast and precision machined alloy

Winch Housing: Cast and precision machined alloy
Gear Train: 440:1 Ratio 4 stage planetary gearset

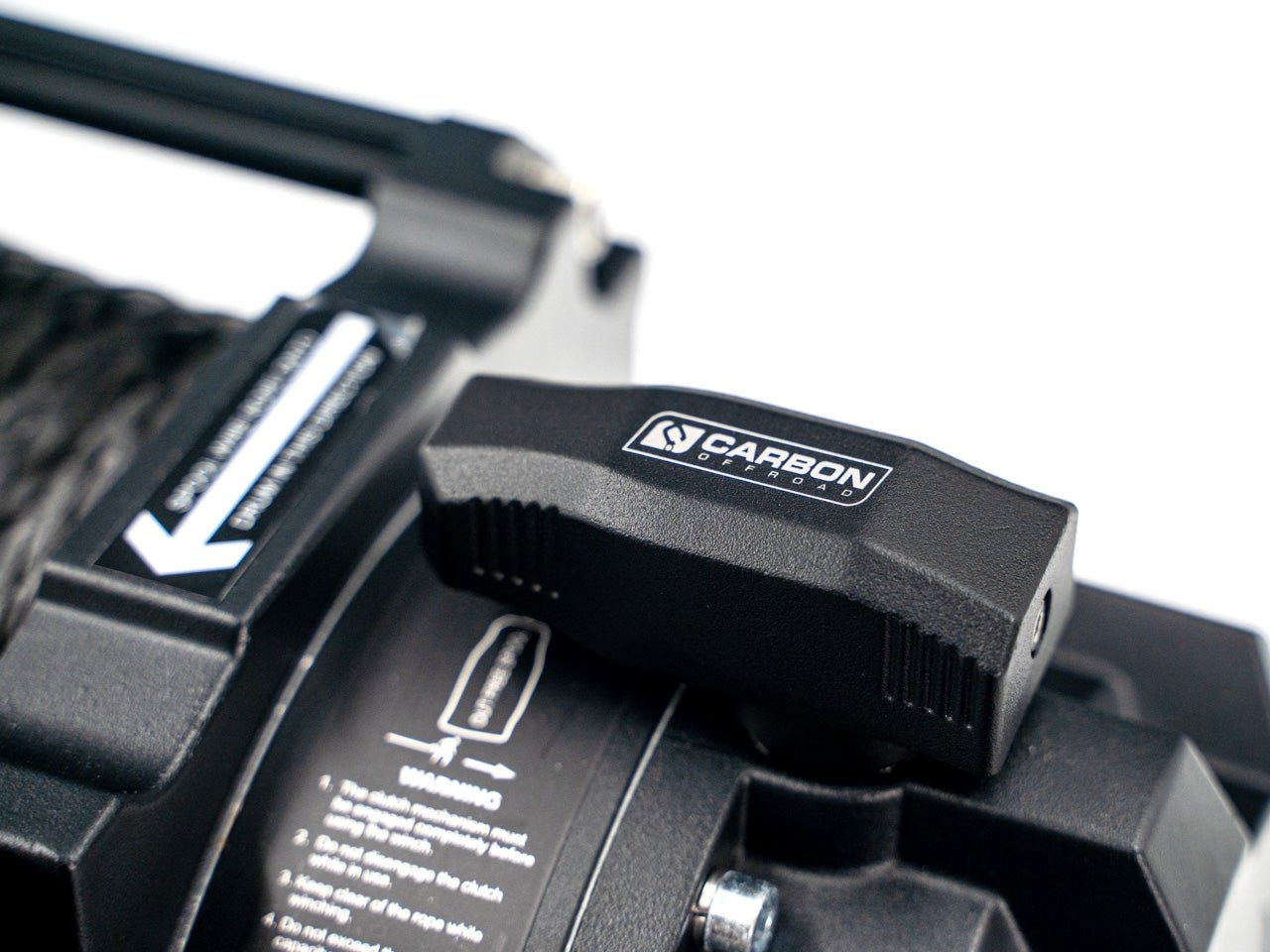

Clutch: Rotating ring gear clutch - easy engagement and disengagement
Synthetic rope: 21m of 14mm diameter UHMWPE fibre
Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
Drum Diameter: 88mm
Battery: 650CCA minimum vehicle battery size for winching.
Shipping Carton Weight: 37KG
Weight as fitted to vehicle: 33.4kg
